MXES-600SHPK (* This product is mainly sold through businesses such as hair and beauty salons, fitness clubs, etc.) ACTIVEPAD “MOTECARE PRO” EMS*1 Device

Make your body more beautiful, faster

  • Three fitness modes that strongly develop both outer and inner muscles
  • Fitness patterns and power levels for intensive training
  • Shape Pad is cordless and rechargeable. It is equipped with a lithium-ion battery that can be repeatedly recharged and used.
  • A fitting belt that supports EMS exercise is also included.
  • A wide electrode area optimal for muscle stimulation. Shape Pad employs a frequency of 17.5 Hz*2 for maximum muscle contraction.
  • A power supply adapter and USB cable are included.
  • Comes in a decorative, luxuriously-designed box.
  1. EMS (electrical muscle stimulation) device: This machine electrically stimulates and contracts muscles.
  2. The 17.5 Hz frequency is effective for contracting muscles according to studies conducted by Maxell

Features

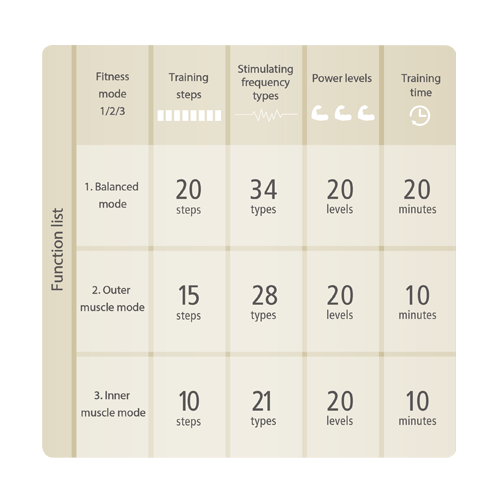

A variety of fitness modes that strongly develop both outer and inner muscles

Shape Pad is equipped with three fitness modes. Each mode uses different movements to work on out-of-shape muscles.

1. Balanced mode

Strongly develops and balances both outer and inner muscles.

2. High mode

Provides strong, intense stimulation like Kaatsu Training.

3. Low mode

Provides soft and refined stimulation for thorough training.

  • How stimulus is transmitted to the muscles and feels may vary between individuals.

Fitness patterns and power levels for intensive training

Shape Pad has new fitness patterns that reduce the acclimation of muscles to stimuli using Maxell’s unique algorithm, which employs a total of 37 stimulation frequencies in varying combinations according to each mode. A total of 45 fitness steps across the different modes enable effective training. Shape Pad also has 20 power levels that allow you to select stronger stimuli for your fitness exercise.

Shape Pad is cordless and rechargeable. It is equipped with a lithium-ion battery that can be repeatedly recharged and used.

The power supply and controller are built into a slim, cordless machine. Just place it on your body to start your fitness exercise.Shape Pad uses a rechargeable lithium-ion battery that makes it inexpensive to use.

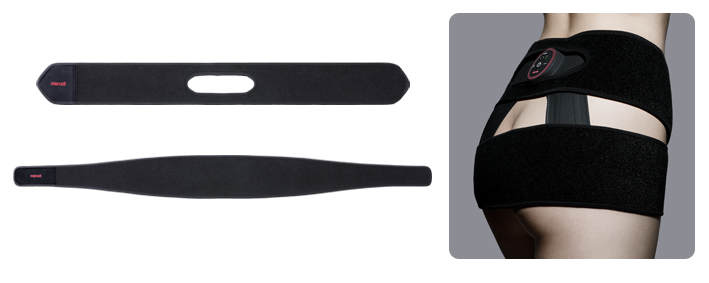

A fitting belt that supports EMS exercise is also included.

The belt prevents the device from being misaligned or removed by securely attaching it to your body, and supports EMS exercises.

Shape Pad stimulates muscles mainly at a frequency of 17.5 Hz*1, which is optimal for muscle contraction.

The wide electrode area is optimal for muscle stimulation. Shape Pad employs a frequency of 17.5 Hz for maximum muscle contraction.

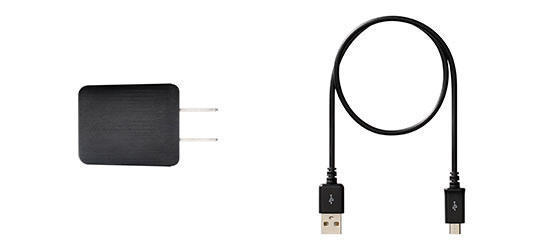

A power supply adapter and USB cable are included.

A dedicated power supply adapter and USB cable are included for charging.

  1. The 17.5 Hz frequency is effective for contracting muscles according to studies conducted by Maxell

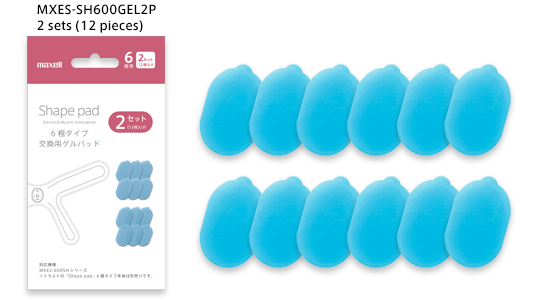

Replacement gel pads

  • Make sure to use genuine Maxell gel pads.
  • Maxell shall not be responsible for any problems resulting from use of gel pads other than those specified.

Part names and functions

Front of device

Rear of device

Power adaptor

Charging cable

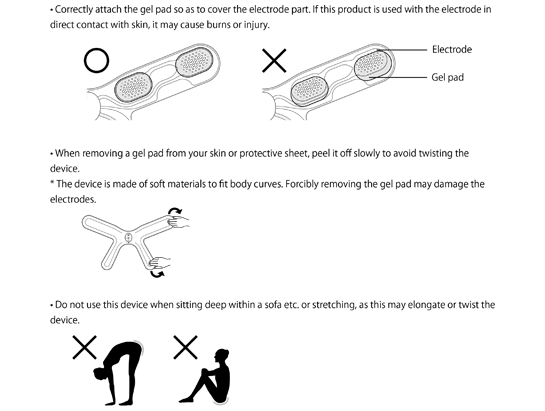

Operating precautions

Product range

Product typeModelTypeQuantityPrice
“Shape Pad” EMS device

MXES-600SHPK

6 electrodes

Main unit x 1, gel pad x 1 set

Open

Replacement gel pad

MXES-SH600GEL2P

For 6 electrodes

2 sets (12 pieces)

  • How stimulus is transmitted to the muscles and feels may vary between individuals.
  • The specifications and design of the product shown on this website are subject to change without notice.
  • The color of the actual product may differ slightly from the photographs shown on this website.

Specifications

Main unit

Main unitModel

MXES-600SHPK

Number of electrodes

6 electrodes

External dimensions

580 (width) x 340 (height) x 17.4 (thickness) mm (gel pad not installed)

Weight

About 170 g (gel pad not installed)

Input voltage/current

5 V DC/Max. 130 mAh

Built-in battery

Lithium-ion battery (3.7 V/200 mAh)

Charging time

About 3 hours

Power supply adapterInput

AC100-240V 50/60Hz

Output

5 V DC/Max. 1 A

Gel pads

1 set (6 pieces)

Accessories

Gel pad x 6, protective sheet x 6, fitting belt for waist x 1 (W12 x L110 cm), fitting belt for hips x 1 (W12 x L115 cm), carrying pouch x 1, power supply adapter x 1, charging cable x 1 (about 50 cm), user manual

Replacement gel pads

Model MXES-SH600GEL2P
Dimensions 51.8 (width) x 82.2 (height) x 0.85(thickness) mm
Quantity 2 sets (12 pieces)
Weight About 5 g/1 piece
Material Hydrogel

Photos Download

Front of device
Rear of device
fitting belt1
fitting belt2
carrying pouch
Power adaptor
Charging cable
Replacement gel pads 2 set (12 pieces)
Gel pads
