MXES-R400YG・200YG“MOTECARE” EMS*1 Device

Keeping your body in shape more easily
Training by simple attachment to your skin

  • MOTECARE is cordless and rechargeable*2. It is equipped with a lithium-ion battery that can be repeatedly recharged and used.
  • MOTECARE provides an original training program consisting of 15 steps and enables you to experience various types of electric stimulation.
  • MOTECARE mainly employs the 17.5 Hz frequency known to be suitable for muscle contraction*3.
  • The wide electrode surface area can stimulate a wider range of muscles.
  • MOTECARE is made of a thin, soft silicon material, and fits perfectly to your body.
  • A power supply adapter and USB cable are included.
  1. EMS (electrical muscle stimulation) device: This machine electrically stimulates and contracts muscles.
  2. Rechargeable: The product can be recharged about 500 times. This is an approximation based on our test results.
  3. The 17.5 Hz frequency known to be effective for muscle contraction: According to studies by Maxell

“MOTECARE” EMS Device Special Website

Features

MOTECARE is cordless and rechargeable*1. It is equipped with a lithium-ion battery that can be repeatedly recharged and used.

The lithium-ion battery is built into the controller that is used when turning the power on and off and selecting the intensity level, and can be fully charged in about 1 hour*2. You can use MOTECARE about 10 times*3 per charge, decreasing its running cost. The cordless MOTECARE provides muscle training anytime, anywhere by simply attaching it to your skin.

MOTECARE provides an original training program consisting of 15 steps and enables you to experience various types of electric stimulation.

MOTECARE provides an original training program consisting of 15 steps for muscle exercise. It automatically switches to the next step by means of an auto-training function.

MOTECARE mainly employs the 17.5 Hz frequency known to be suitable for muscle contraction*4.

The product mainly applies a frequency of 17.5 Hz, known to be effective for muscle contraction.

The wide electrode surface area can stimulate a wider range of muscles.

MOTECARE covers more of the area you want to train, and supports muscle movement over the entire area.

Usage examples

4 electrodes

Around the abdomen
Thighs
Around the waist

2 electrodes

Upper arms
Flanks
Hips

MOTECARE is made of a thin, soft silicon material, and fits perfectly to your body.

The silicon has been made even thinner and flexibility has been enhanced to more appropriately fit the contours of your body.

A power supply adapter and USB cable are included.

A dedicated power supply adapter and USB cable are included for charging.

  1. Rechargeable: The product can be recharged about 500 times. This is an approximation based on our test results.
  2. 1 hour recharge time: Based on our test results
  3. 10 uses per charge: Each original program lasts about 20 minutes. The number of uses varies according to usage conditions.
  4. The 17.5 Hz frequency known to be suitable for muscle contraction: According to studies by Maxell

Replacement gel pads

Part names and functions

Front of device

Rear of device

Power adaptor

Charging cable

Operating precautions

Product range

Product typeModelTypeQuantityPurchasePrice
“MOTECARE” EMS device

MXES-R400YG

4 electrodes

Main unit x 1, gel pad x 1 set

Buy here

Open

MXES-R200YG

2 electrodes

Main unit x 1, gel pad x 1 set

Buy here

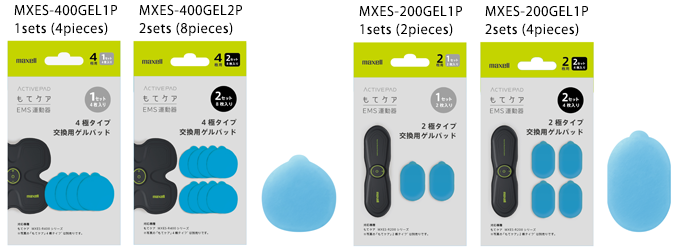

Replacement gel pad

MXES-400GEL2P

For 4 electrodes

2 sets (8 pieces)

Buy here

MXES-400GEL1P

For 4 electrodes

1 set (4 pieces)

Buy here

MXES-200GEL2P

For 2 electrodes

2 sets (4 pieces)

Buy here

MXES-200GEL1P

For 2 electrodes

1 set (2 pieces)

Buy here

Products displayed with the (icon) mark can be purchased from the Maxell Online Rakuten Ichiba Shop, Maxell’s direct-sales website.

  • The names, logos, and service marks are trademarks or registered trademarks of Maxell and other companies.
  • The specifications and design of the product shown in this catalog are subject to change without notice.
  • The color of the actual product may differ slightly from the photographs shown in this catalog.

Specifications

Main unit

Main unitModel MXES-R400YG MXES-R200YG
Electrode type 4 electrodes 2 electrodes
External dimensions 165 (width) x 165 (height) x 10.5 (thickness) mm (gel pad not installed) 225.5 (width) x 65.5 (height) x 10.5 (thickness) mm (gel pad not installed)
Weight About 61 g (gel pad not installed) About 40 g (gel pad not installed)
Input voltage/current 5 V DC/Max. 100 mA
Built-in battery Lithium-ion battery (3.7 V/60 mAh (222 mWh))
Charging time About 1 hour (10 to 35°C)
Gel padDimensions 56.5 (width) x 56.4 (height) x 0.85 (thickness) mm/1 piece 82.2 (width) x 51.8 (height) x 0.85 (thickness) mm/1 piece
Weight About 3 g/1 piece About 5 g/1 piece
Quantity2-set package 8 pieces 4 pieces
1-set package 4 pieces 2 pieces
Material Hydrogel
Power supply adapterInput 100 to 240 V AC, 50/60 Hz
Output 5 V DC/Max. 1 A
Included gel pad 1 set (4 pieces) 1 set (2 pieces)
Accessories Gel pad, protective sheet x 1, power supply adapter x 1, charging cable (about 50 cm) x 1, user manual

Photos Download

MXES-R400YG Package
Surface of device
Back of device
Device
Device
Device
Device
MXES-R200YG Package
Surface of device
Back of device
Device
Device
Power adaptor
Charging cable
Replacement gel pads 1 set (4 pieces)
Replacement gel pads 2 set (8 pieces)
MXES-R400YG Gel pads
Replacement gel pads 1 set (2 pieces)
Replacement gel pads 2 set (4 pieces)
MXES-R200YG Gel pads
