MXAP-ARD200 "OZONEO Room Drying Next" Anti-Bacterial deodorizer

Sterilizing and deodorizing of "Room Drying" and "Clothes after returning home"
New habits of the New-normal Era

"Room Drying Shot" deodorizes the odors while drying laundry indoors by its strong oxidizability of ozone.^*1
"Clothing Direct Shot" using with dedicated clothing cover to deodorize the Coats or Suits after returning home by its strong oxidizability of ozone^*1 to suppress bacteria attached.^*2
This is recommended for bacteria/odor elimination in a closet where humidity tends to accumulate.^*3
With Remote Control, you can operate the main unit from a far distance.

Deodorization:Test Result after 2 hours in 1m³ sealed test space.^※★1
Suppressing adherent bacteria: In testing condition of adherent bacteria. Test Result after 8 hours in a sealed test space as of about 25m³.^※★2
※The test result cannot reflect to actual usage conditions. This product may not be effective for all odors, bacteria, and viruses.
Please do not use it for Luxury goods such as Fur Goods, Leather Goods and Japanese "Kimono" clothes.

Media Topics Introduction

"ROOMIE" published article

14th March 2022

With this, "Room drying stress" is drastically reduced in the pollen season ! It was able to eliminate the odor in the place that I was worried about ~ | My classic style

"@DIME"published article

9th December 2021

That is convenient! Maxell's Ozone Anti-Bacterial Deodorizer "Ozoneo Room Drying Next" that can shut out odors and bacteria from clothes

OZONEO Special Website

Products
Spec
Downloads

Features

Decomposes bacteria and annoying odors at their sources, utilizing the powerful oxidizability of ozone^*1

Bacteria attaching on laundry and clothes are the cause of odors, Ozone^*2 is used to decompose them.

Regarding the effect of Ozone.

・Deodorization:Test Result after 2 hours in 1m³ sealed test space.^※★1

・Suppressing adherent bacteria: In testing condition of adherent bacteria. Test Result after 8 hours in a sealed test space as of about 25m³.^※★2

※The test result cannot reflect to actual usage conditions. This product may not be effective for all odors, bacteria, and viruses.

Usage Method 1【Room Drying Shot】

When drying the laundry in the room, sterilize and deodorize the clothes with the wind of fan.

【Horizontal Swing】

Automatic horizontal swing function with a range of about 60 degrees.^*3

【Vertical Angle Control】

Vertical angle can be manually controlled at three-levels (0/45/90 degrees.)

【Timer】

Can be set from one to seven hours.

(If the timer is not set, operation will be stopped after eight hours due to Auto OFF function.)

【Airflow switch】

"Room Drying Shot" can be switched between two levels (Low/ High) according to amount of laundry.

※Airflow "C" is used for "Clothing Direct Shot".

Usage Method 2【Clothing Direct Shot】

After returning home, deodorize coats and suits at the entryway to inhibit adhered bacteria.

Regarding the effect of Ozone

・Deodorization: Test Result after 2 hours in 1m³ sealed test space.^※★1

・Suppressing adherent bacteria: In testing condition of adherent bacteria. Test Result after 8 hours in a sealed test space as of about 25m³.^※★2

・Virus removal: In testing condition of adherent viruses. Test Result after 2 hours in a sealed test space as of about 25m³.^※★3

※The test result cannot reflect to actual usage conditions. This product may not be effective for all odors, bacteria, and viruses.

【Dedicated clothing cover included】

Use it as a "Clothing Direct Shot" at the entryway when you return home.

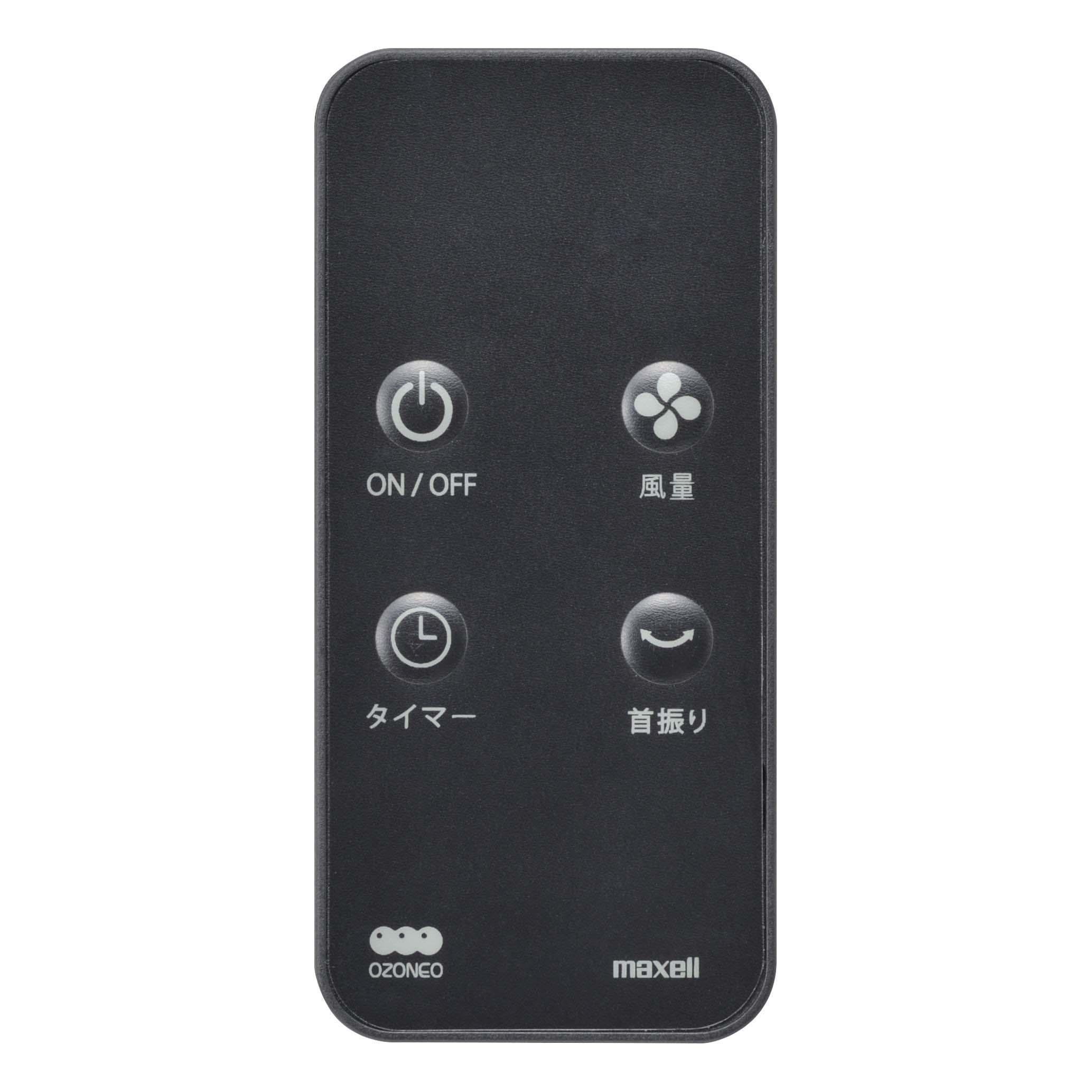

Compact Size Remote Control included

Including compact size remote control that allows you to operate the main unit from a distance.

This product may not be effective for all odors, bacteria, and viruses.
Low-concentration ozone: Ozone adjusted to a level lower than the environmental standard (0.05 ppm) stipulated by the Basic Environment Law.
"Clothing Direct Shot", it is fixed without swinging function, and the timer is fixed for 1 hour.

※★1 Deodorization effect test:【Executive Agency】Life Science Research Laboratory 【Test No.】 LSRL-B123 【Test name】 Deodorizing effect of dry odor 【Test conditions】 6-step odor intensity display method in a 1 m³ enclosed space Evaluation 【Test result】 Odor intensity decreased by 3 levels in about 2 hours.
※This deodorization effect test was conducted by MXAP-ARD100 (Model equipped with the same mechanism as MXAP-ARD200).
※★2 Sterilization effect test:【Executive Agency】 Shoku-Kan-Ken, Inc. 【Test No.】 207444N 【Test name】 Sterilization effect test for adherent bacteria 【Test conditions】 25 m³ (about 6 tatami mats) enclosed space 【Test results】 99% sterilization after 8 hours.
※★3 Virus removal effect test: 【Executive Agency】 Shoku-Kan-Ken, Inc. 【Test No.】 207754N 【Test name】 Effect confirmation test for adhered virus 【Test conditions】 25 m³ (about 6 tatami mats) enclosed space 【Test results】 99% removed after 2 hours.
※The test result cannot reflect to actual usage conditions. This product may not be effective for all odors, bacteria, and viruses.

Line Up

Product type	Model	Color	Order	Price
Anti-bacterial deodorizer	MXAP-ARD200	White	Order from here	Open

Can be purchased from the official Maxell main store and Maxell’s direct-sales website.

The effectiveness of the product varies depending on the environment in which it is used, such as temperature and humidity, hours of use, and location.
If there is a baby or a small animal in your home, choose where to install and use this product carefully.
Do not bring your face to within 30 cm of the low-concentration ozone outlet.
Be aware that metals that rust easily and natural rubbers may deteriorate when in contact with ozone.
Unlike air cleaning devices, this product is not equipped with a dust collection function.
This product is not waterproof. Do not use this product in places where it may be exposed to water, such as near the bath.
Install the product at a distance of about 50 cm from laundry.
Please use the dedicated clothing cover for "Clothing Direct Shot".
The specifications and design of listed products are subject to change without notice.
The product images shown may differ from the actual product color.
Odors and bacteria that are not in contact with the wind from the outlet that cannot be removed.

Product's Specification

Model Number		MXAP-ARD200
Power Supply		AC100V　50/60Hz
Power Consumption　50/60Hz		33/30W
Mode		Room Drying Shot (2 modes): L or H Clothing Direct Shot (1 mode): C
Wind Speed	50Hz	L：3m/s　　H：4.5m/s　　C：2.5m/s
Wind Speed	60Hz	L：2.5m/s 　H：3.5m/s　　C：2m/s
Swing Angle (L,H mode)	Side-to-side	About 60 degrees (automatic) ※In "C" Mode, it will be fixed without swinging left and right
Swing Angle (L,H mode)	Upward/downward	0/45/90 degrees (three levels, manual)
Ozone Generation		Maximum 10 mg/h
Timer	Setting	1 to 7 hours ※In "C" Mode, it will be fixed for 1 hour
Timer	Auto OFF	8 hours
Dimension		Width 250 mm x Depth 250 mm x Height 197 mm (when vertical angle is 0 degrees)
Weight		About 2.4 kg
Accessories		Dedicated Clothing Cover, Remote Control (Including Battery CR2032), Instruction Manual (with warranty)
