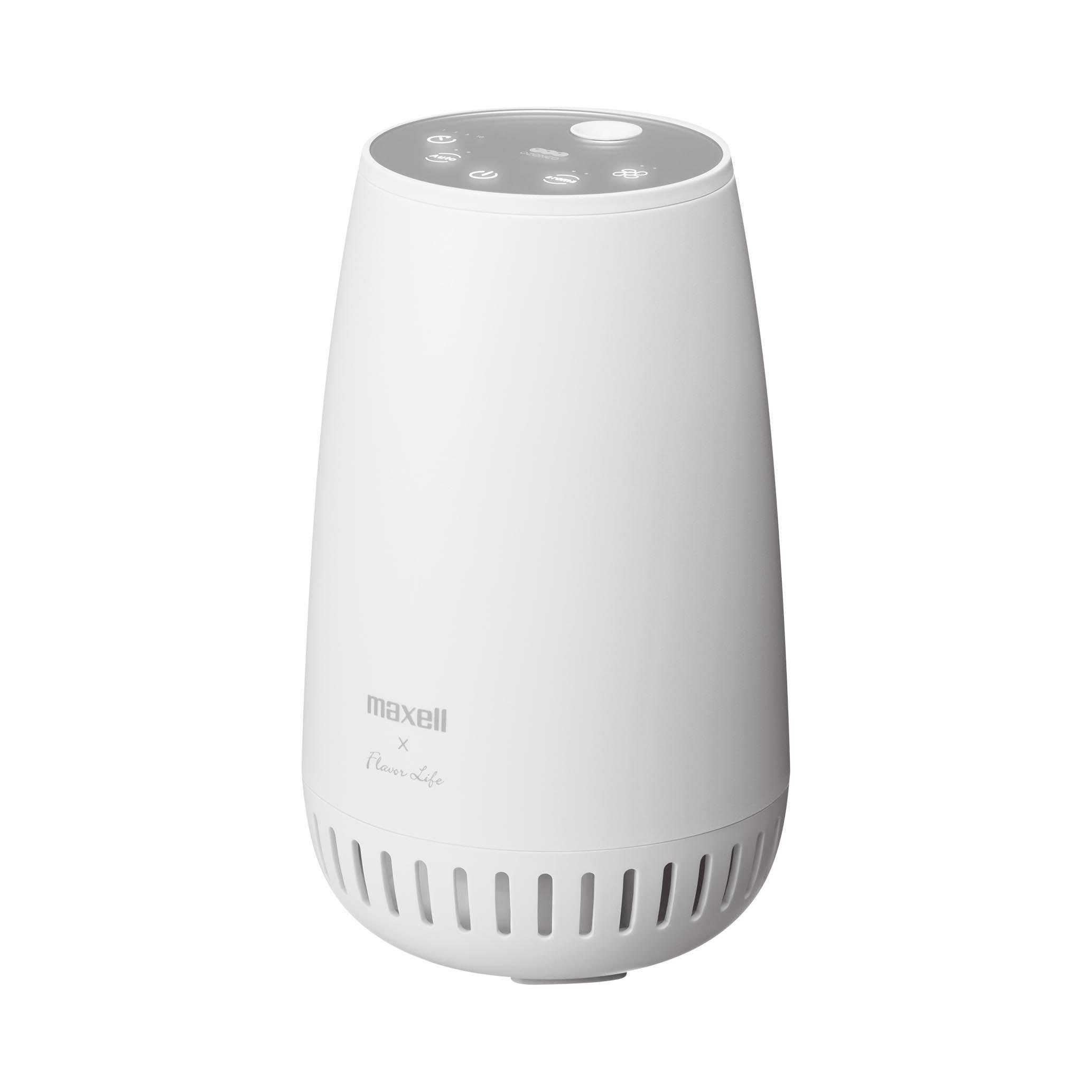

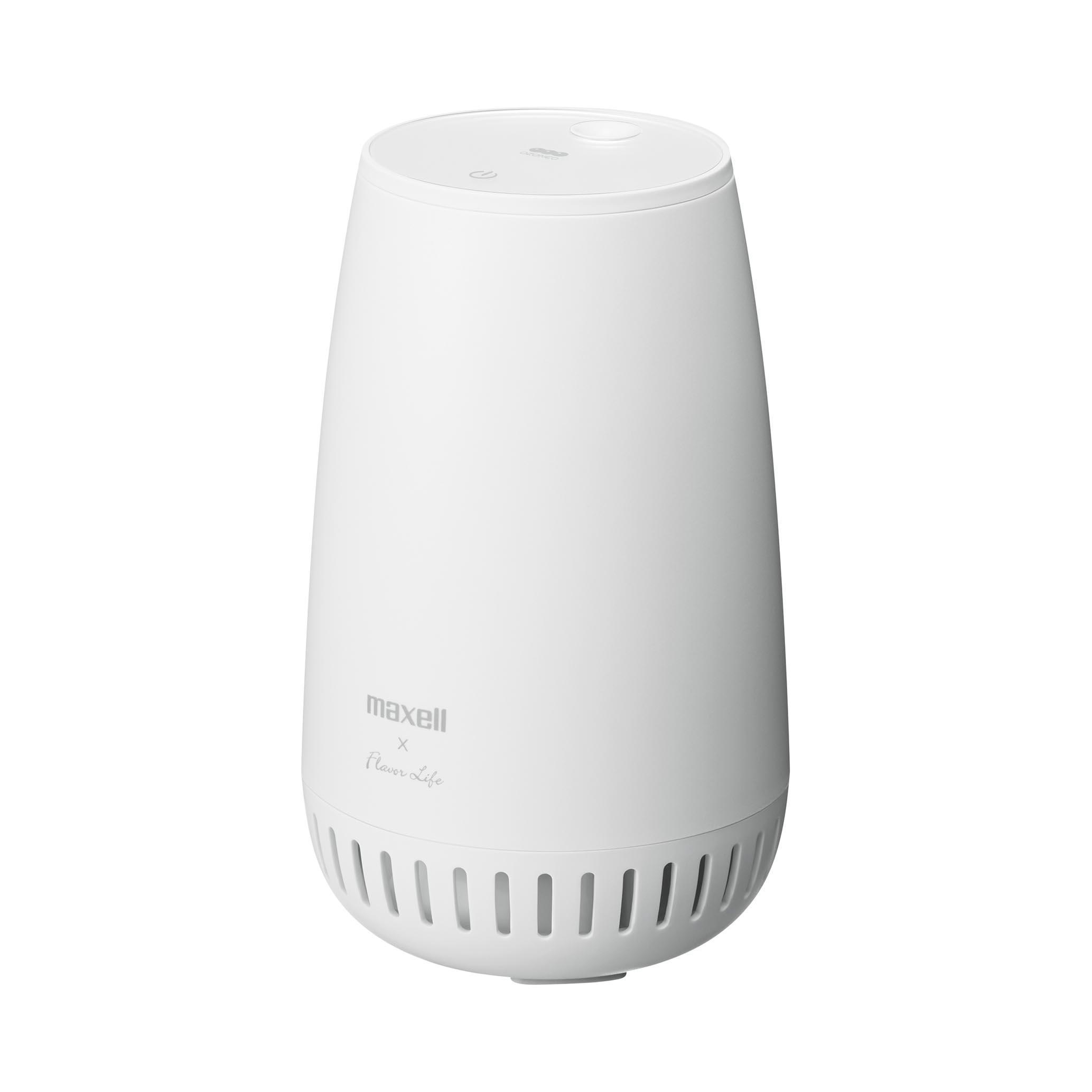

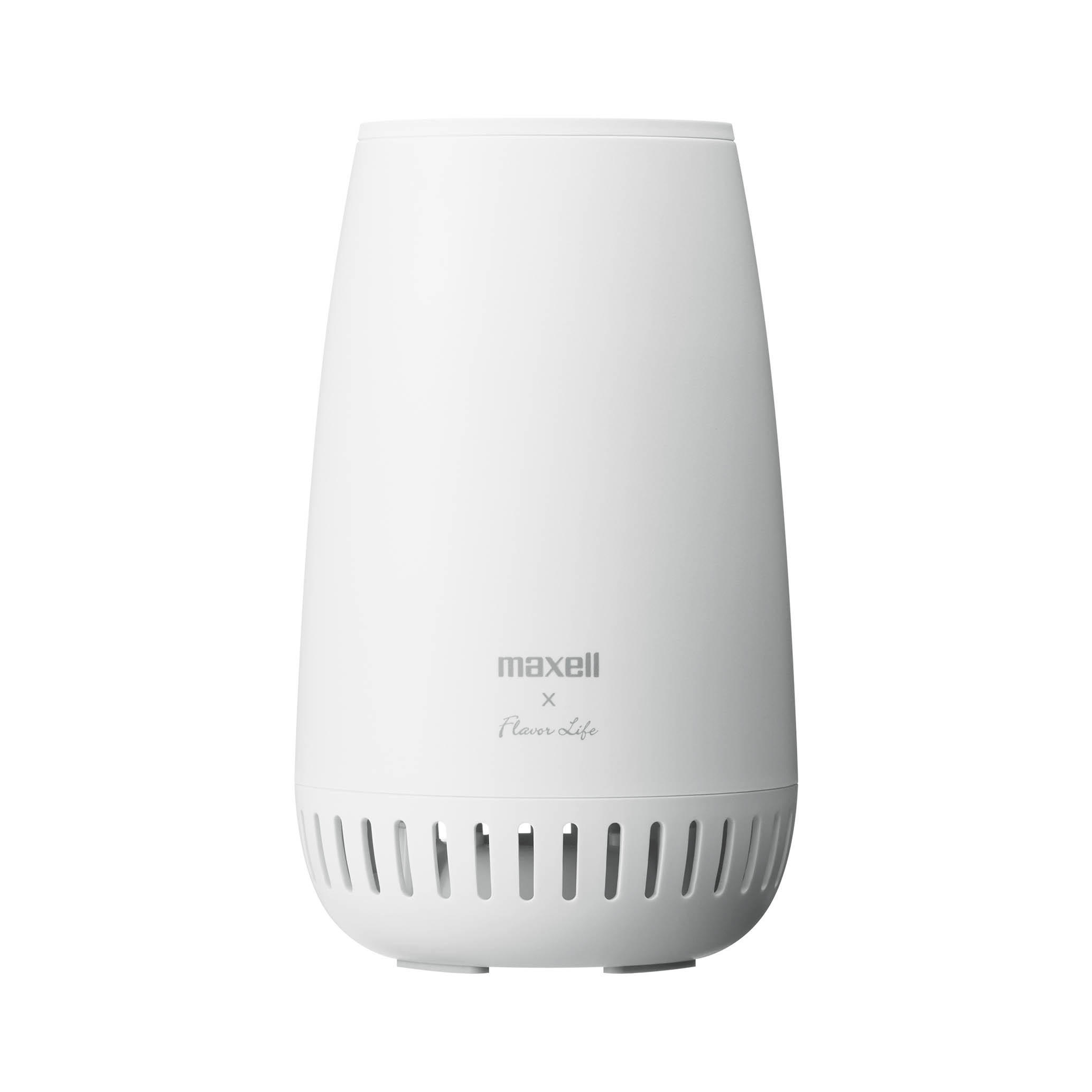

MXAP-FAE275R/FAE275T “OZONEO AROMA” Ozone anti-bacterial deodorizer with aroma diffuser function
Reset the air,
Relax the mind.
- Anti-bacterial Deodorizing mode*2 in which three levels of ozone*1 can be selected depending on the size of the room.
- Aroma Diffuser mode*3, can select the intensity of fragrance in three levels.
- Welcome Home mode*4 automatically switching from ozone*1 to aroma.
- Quiet design for comfortable use even in bedrooms and other places where quietness is required.
- Antimicrobial*5 on the surface of the control panel for use in cleanliness.(Models compatible with antibacterial processing:MXAP-FAE275R)
- Ozone:The ozone concentration is set to be less than or equal to the average allowable concentration of 0.05ppm in the room defined by the Japan Air Cleaning Association.
- Anti-bacterial Deodorizing mode: Recommended coverage is subject to the number of ventilations in residential rooms (0.5 times/hour) in accordance with the Building Standards Law.It is set to be an ozone concentration that is effective and is below the average of the permissible indoor concentrations determined by the Japan Air Cleaning Association.
- Aroma Diffuser mode:The recommended application range is determined by conducting tests based on the six-level odor intensity scale.
- Welcome Home mode:After 11 hours of operation in anti-bacterial deodorization mode,the system operates for 1 hour in Aroma Diffuser mode and stops.The operation time is fixed.
- Antimicrobial Processing:Test Methods ISO 22196: Confirmed according to 2011(E).
※Aroma mode and deodorization mode cannot be used simultaneously.
「OZONEO」Special Website
Features
"Anti-bacterial Deodorizing mode" in which three levels can be selected depending on the size of the room.
OZONEO AROMA is equipped with three ozone fan strength switching modes.
The volume of ozone generated and the fan strength of the built-in fan can be controlled according to the size of the room.
【Recommended coverage for each mode】
Low: about 1.6 to 9.3m2, Mid: about 9.3 to 21.7m2, High: about 18.6 to 31m2
※Recommended coverage is subject to the condition of the number of ventilations in residential rooms (0.5 times/hour) in accordance with the Building Standards Law, It is set to be an ozone concentration that is effective and is below the average of the permissible indoor concentrations determined by the Japan Air Cleaning Association.
“Aroma Diffuser mode” allows you to enjoy the original fragrance of your aroma.
【Nebulization】

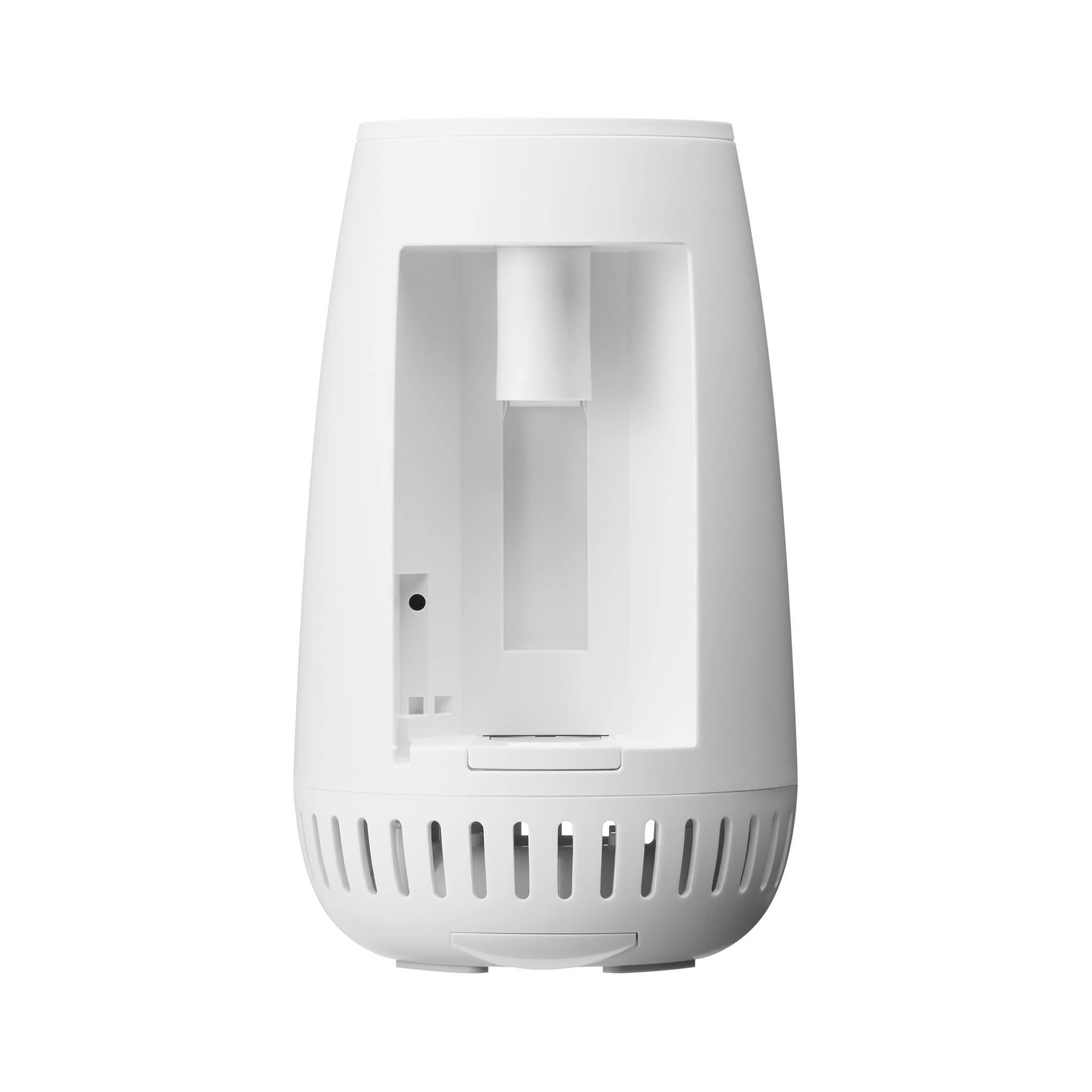

The setup is very easy by simply insert the Essential Oil(sold separately) into the nebulizer of the product. As the nebulizer does not use water or heat, the fragrance of the essential oil is pure and enjoyable.
【Mode switching】
From Approx. 9.3m2 to Approx. 62m2, you can select the operations depending on the size of the room.
The recommended scope of application: Low:Approx. 9.3m2 / Mid:Approx. 21.7m2 / High:Approx. 62m2
※The recommended scope of application is set based on the six-level odor intensity scale.
【Timer】
The aroma diffuser mode allows for timer setting (1h/3h/5h/10h)
※The timer can be set only in the aroma diffuser mode.
”Welcome Home Mode” for going out.
By setting this mode before leaving, the air in the room will be cleaned by the ozone.Then,it will automatically switch to aroma and spreads the favorite scents into the space before you return home.
※After 11 hours of operation in anti-bacterial deodorization mode,the system operates for 1 hour in Aroma Diffuser mode and stops.The operation time is fixed.
【Mode switching】
Depending on the size of the room, you can select the operations in 2 levels.
Operation 1:Anti-bacterial Deodorizing function(Mid)/ Aroma Diffuser function(Mid)
Operation 2:Anti-bacterial Deodorizing function(High)/ Aroma Diffuser function(Mid)
Quiet design for comfortable use even in bedrooms and other places where quietness is required.
The operating noise level is 35dB or less under Hi setting in both Anti-bacterial Deodorizing mode and Aroma Diffuser mode.
Anti-bacterial Deodorizing function: The recommended scope of application is based on the condition of the number of ventilations (0.5 times/hour) in residential rooms in compliance with the Building Standards Law,It is set to be an ozone concentration that is effective and is below the average of the permissible indoor concentrations determined by the Japan Air Cleaning Association.
Aroma Diffuser function:The recommended scope of application is set based on the six-level odor intensity scale.
Antimicrobial on the surface of the control panel for use in cleanliness.
The main body operation panel is subject to antimicrobial processing, which can be used cleanly.
※Models compatible with antibacterial processing:MXAP-FAE275R
【Antibacterial effect】
Part name:Main unit
Components’name of treatment: Control panel
Testing methods:ISO 22196:2011(E)
Antimicrobial Methods:Surface coating
Laboratories:Vkan Certification & Testing Co, Ltd.

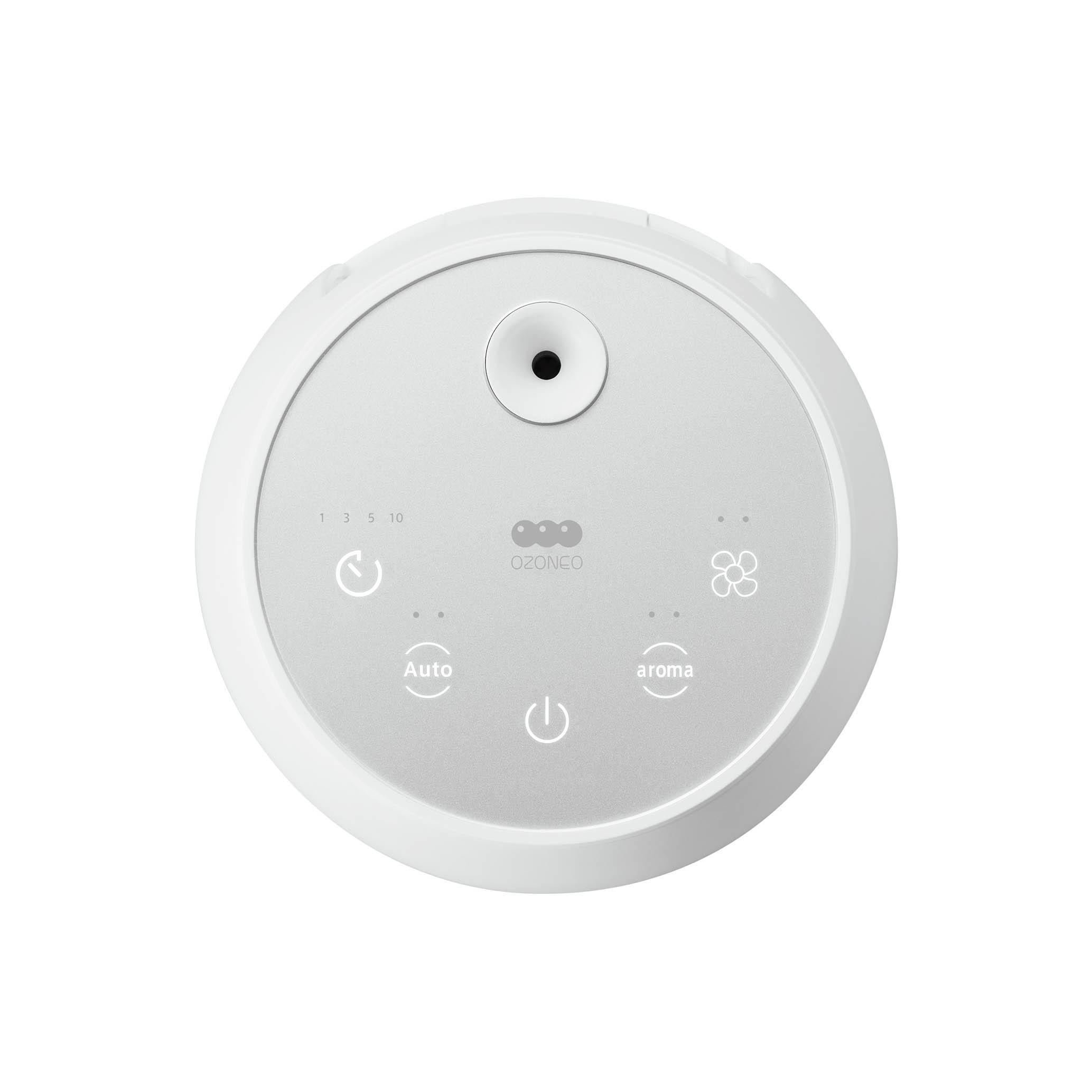

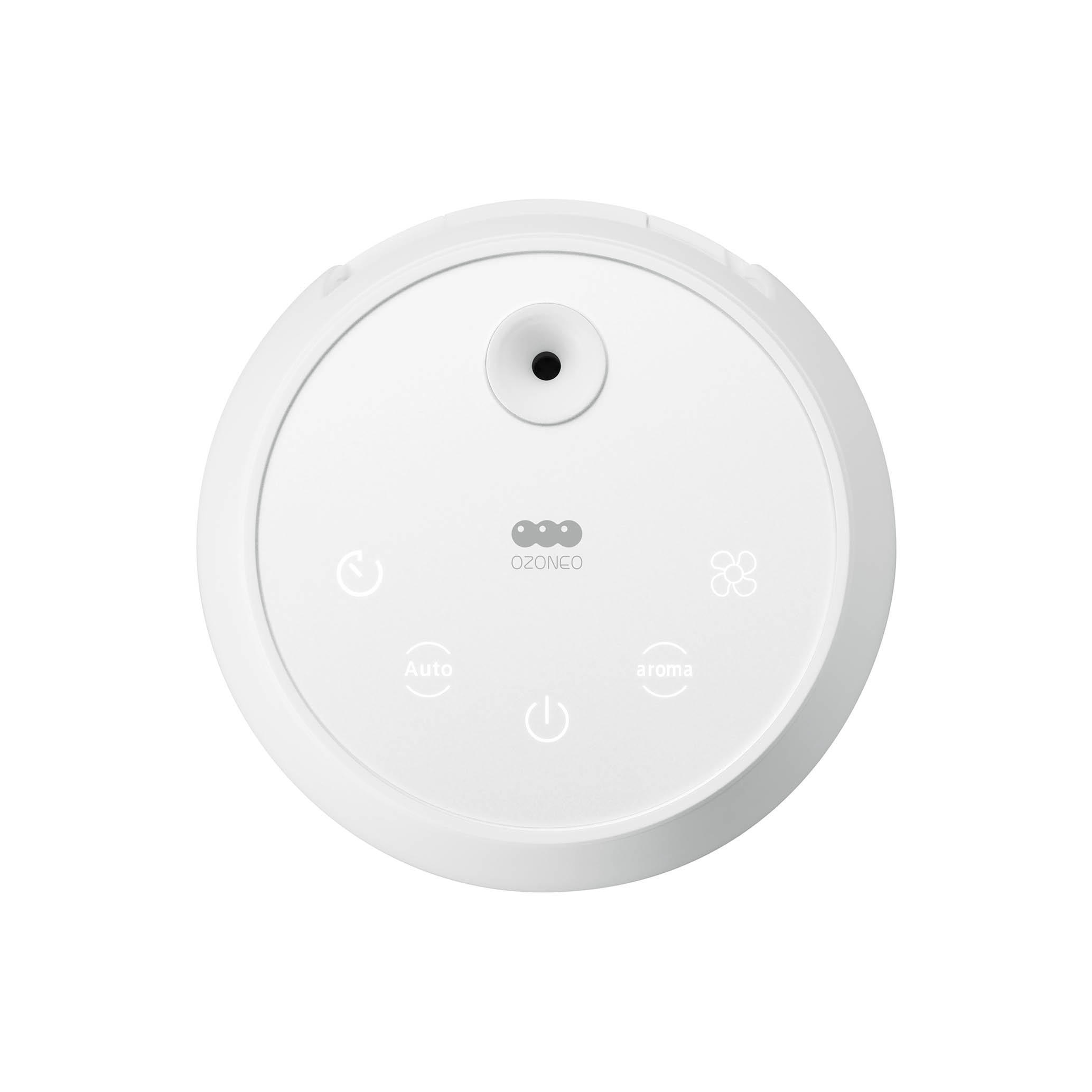

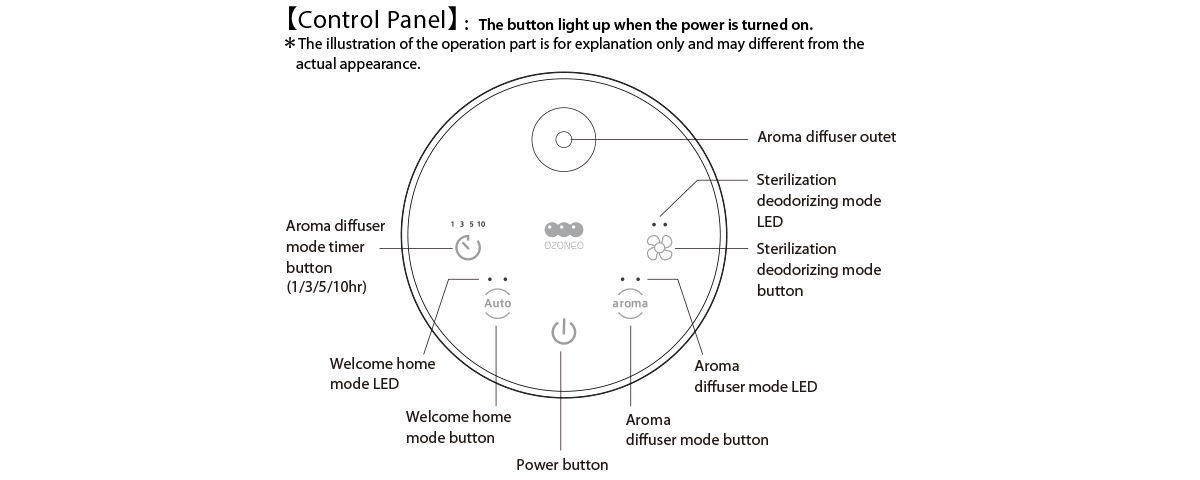

The control panel with a button for each mode.

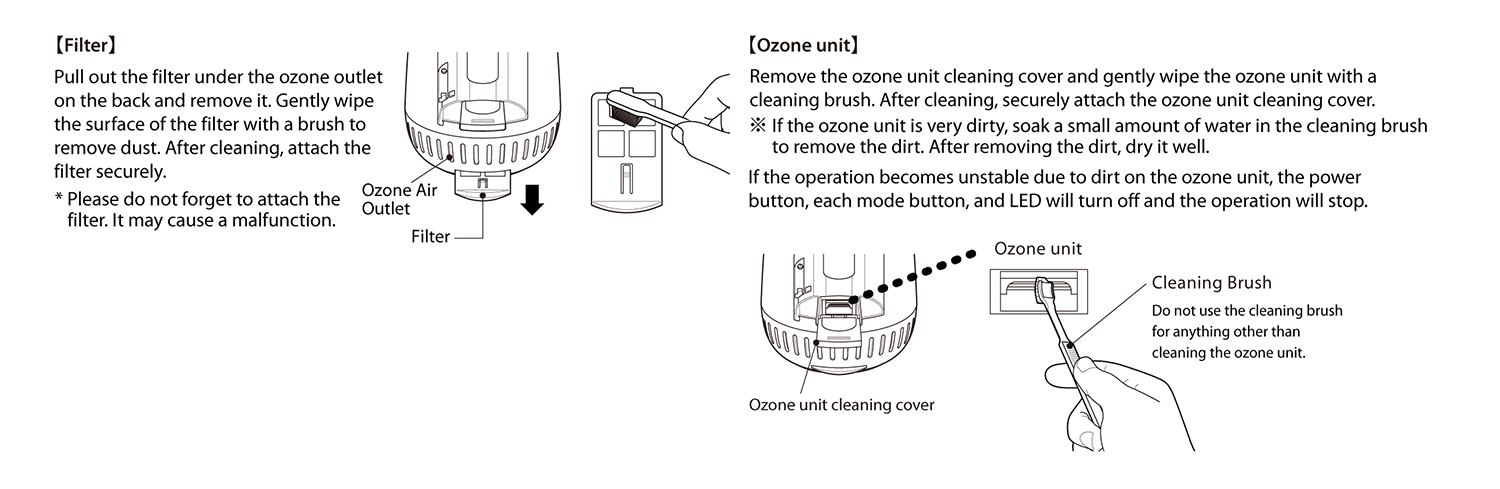

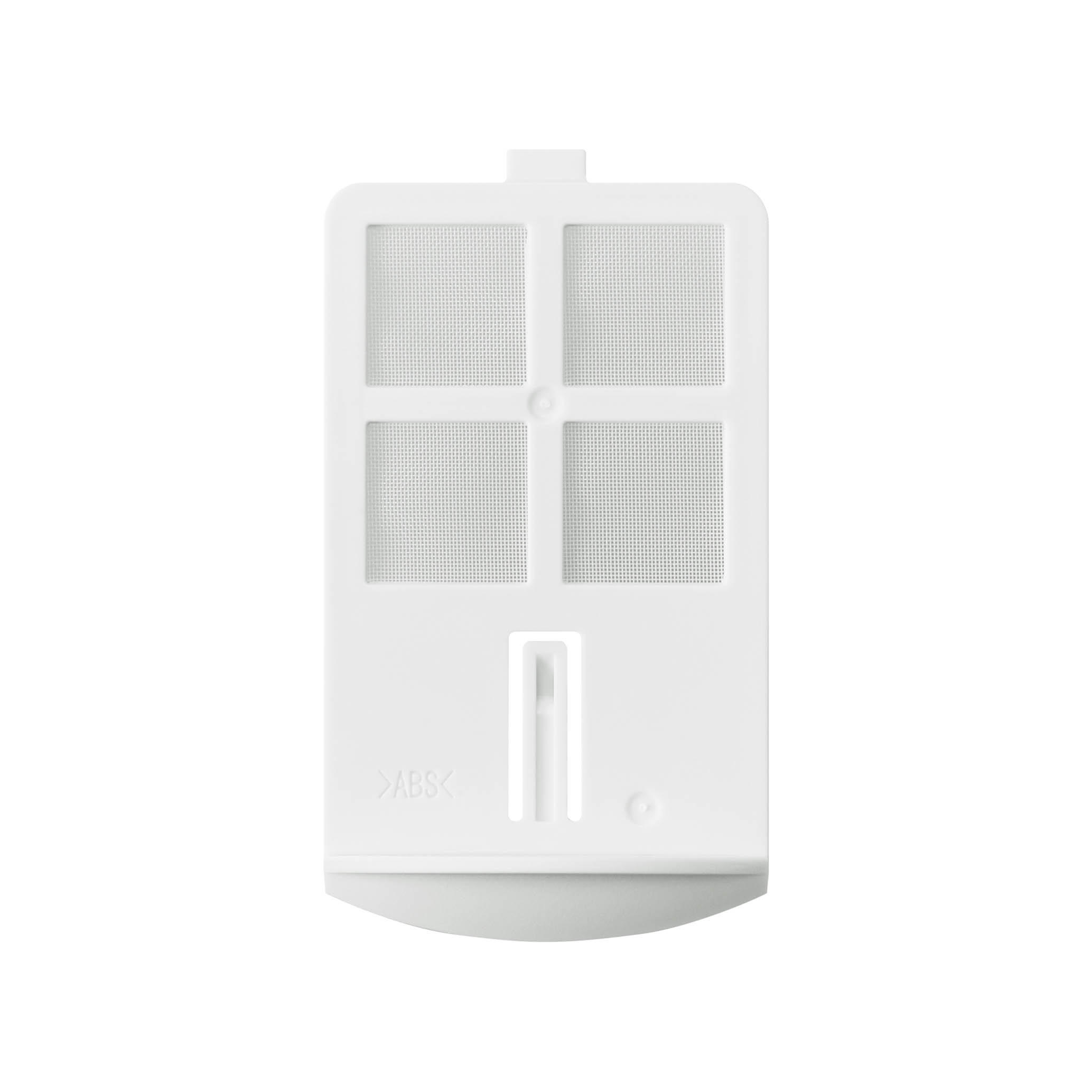

Maintenance is easy – just remove any dust from the filter and ozone unit.
Usage scenarios
Supported Essential Oil (Optional item)
Compatible with natural blend essential oils produced by Flavor Life Co., Ltd.You can choose the one that best suits your needs.

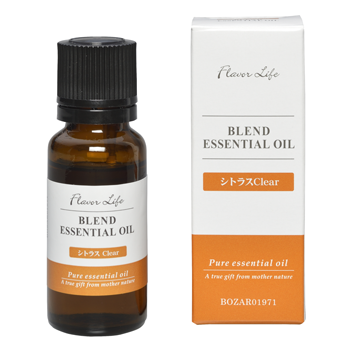

【Citrus Clear(20mL)】
Recommended when you want to be refreshed or when you want to be cheerful.It has a sweet, clear scent of citrus fruits.

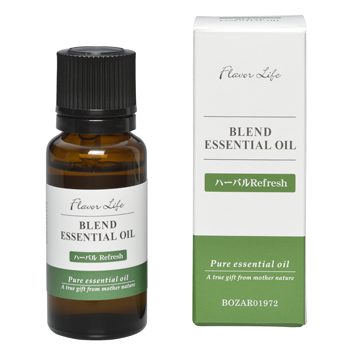

【Herbal Refresh(20ml)】
Recommended when you want to concentrate on work, or when you want to change your feelings.It has a refreshing aroma that harmonizes the refreshment of herbs and citrus fruits.

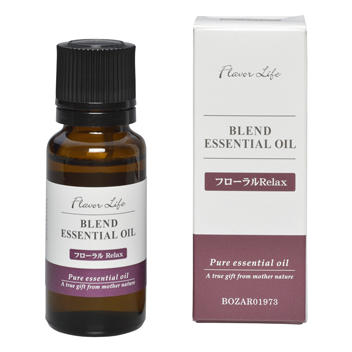

【Floral Relax(20ml)】
Recommended before sleep or when you want to relax and calm down.Lavender-based, pleasant, gentle flavor.
Product Lineup
| Type | Model | Color | Purchase | Price |
|---|---|---|---|---|
| Ozone Anti-Bacterial Deodorizer With Aroma Diffuser Function | MXAP-FAE275R | White | Open | |
| MXAP-FAE275T |
Optional item
| Type | Product name | Model |
|---|---|---|
| Supported Essential Oil (Made by Flavor Life Co., Ltd.) |
Citrus Clear | BOZAR01971 |
| Herbal Refresh | BOZAR01972 | |
| Floral Relax | BOZAR01973 |
- Essential oils are not included in this product. Use compatible essential oils.
- The ozone concentration is set to be less than or equal to the average allowable concentration of 0.05ppm in the room. Do not use the product outside of the applicable range.
- Bacteria elimination: Bacteria elimination effects were confirmed in a closed space of 25 m3 at the Kitasato Research Center for Environmental Science.Test number:北生発2019_0466
- Odor elimination:Odor eliminating effects were confirmed in a closed space of 109 L at Japan Food Research Laboratories.Test number:20007306
- Virus removal:Viral elimination effects were confirmed in a closed space of 25 m3 at Japan Food Research Laboratories.Test number:20010243001-0101
- The following test results show the test results on Ozone anti-bacterial deodorizer MXAP-AE270 released in June 2020.Ozone anti-bacterial deodorizer "Ozoneo Aroma (MXAP-FAE275) is equipped with the same mechanism of ozone unit as "MXAP-AE270".Maxell have confidence in similar results will be obtained; the effect cannot be guaranteed.
- Effectiveness varies depending on surroundings and operating time.
- Please use and store the product away from infants.
- Please keep away (30 cm) from air outlets (Do not put anything within 30cm of an air outlet.)
- Be aware that materials that rust easily and natural rubbers may deteriorate when they are exposed to ozone.
- Unlike air cleaning devices,this product is not equipped with a dust collection function.
- This product is not waterproof.Do not use this product in places where it may be exposed to water,such as inside the bathroom.
- The specifications and design of the product shown on this website are subject to change without prior notice.
- The color of the actual product may differ slightly from the product photos shown on this website.
Product Specifications
| Model | MXAP-FAE275R |
|---|---|
| MXAP-FAE275T | |
| Power supply | Dedicated AC adapter |
| Input voltage/current | DC12V/1.2A |
| Power consumption | Max.5W |
| Operating temperature range | 5～40℃(no condensation) |
| External Dimensions | W142mm ×D142mm × H234mm |
| Weight | About800g(bottle excluded) |

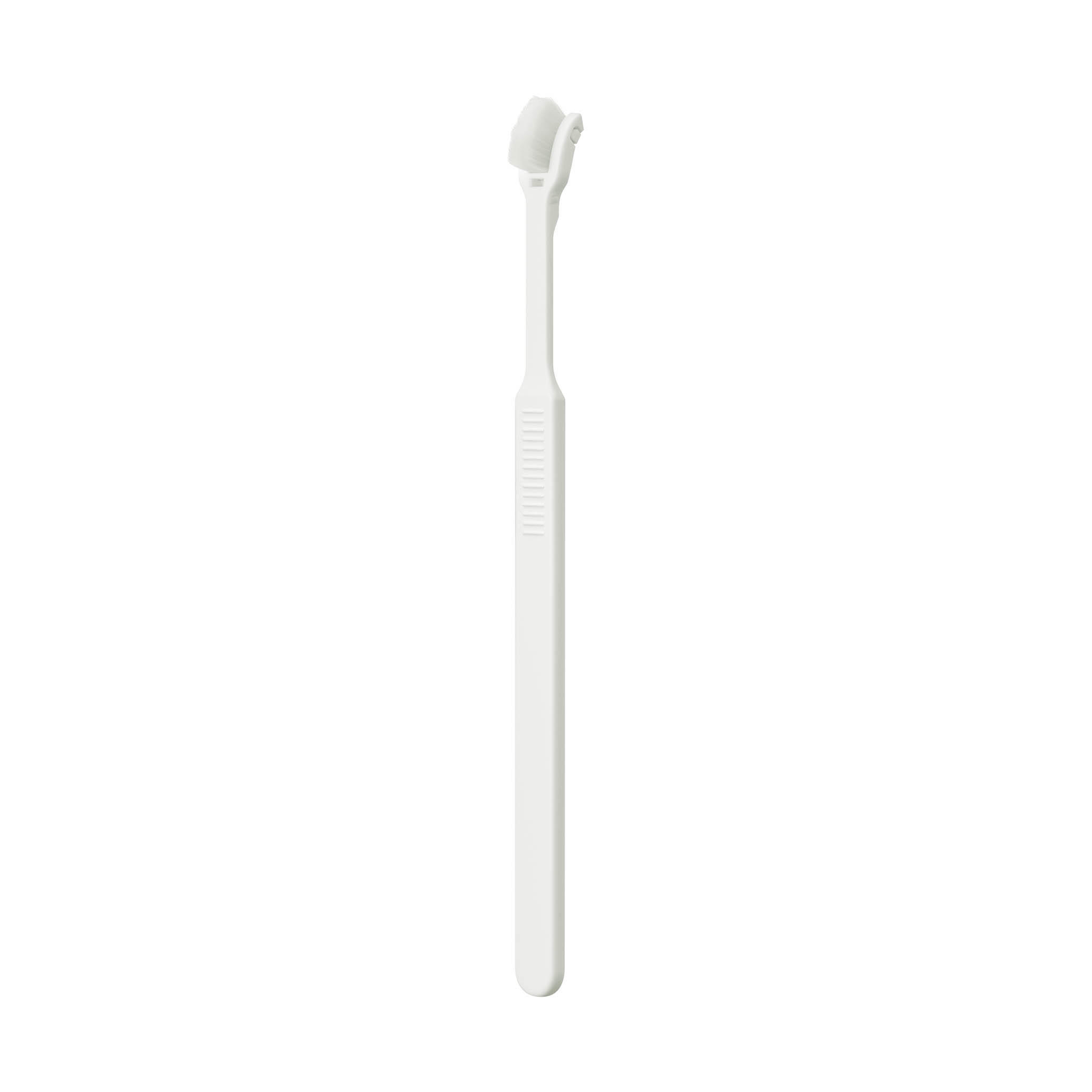

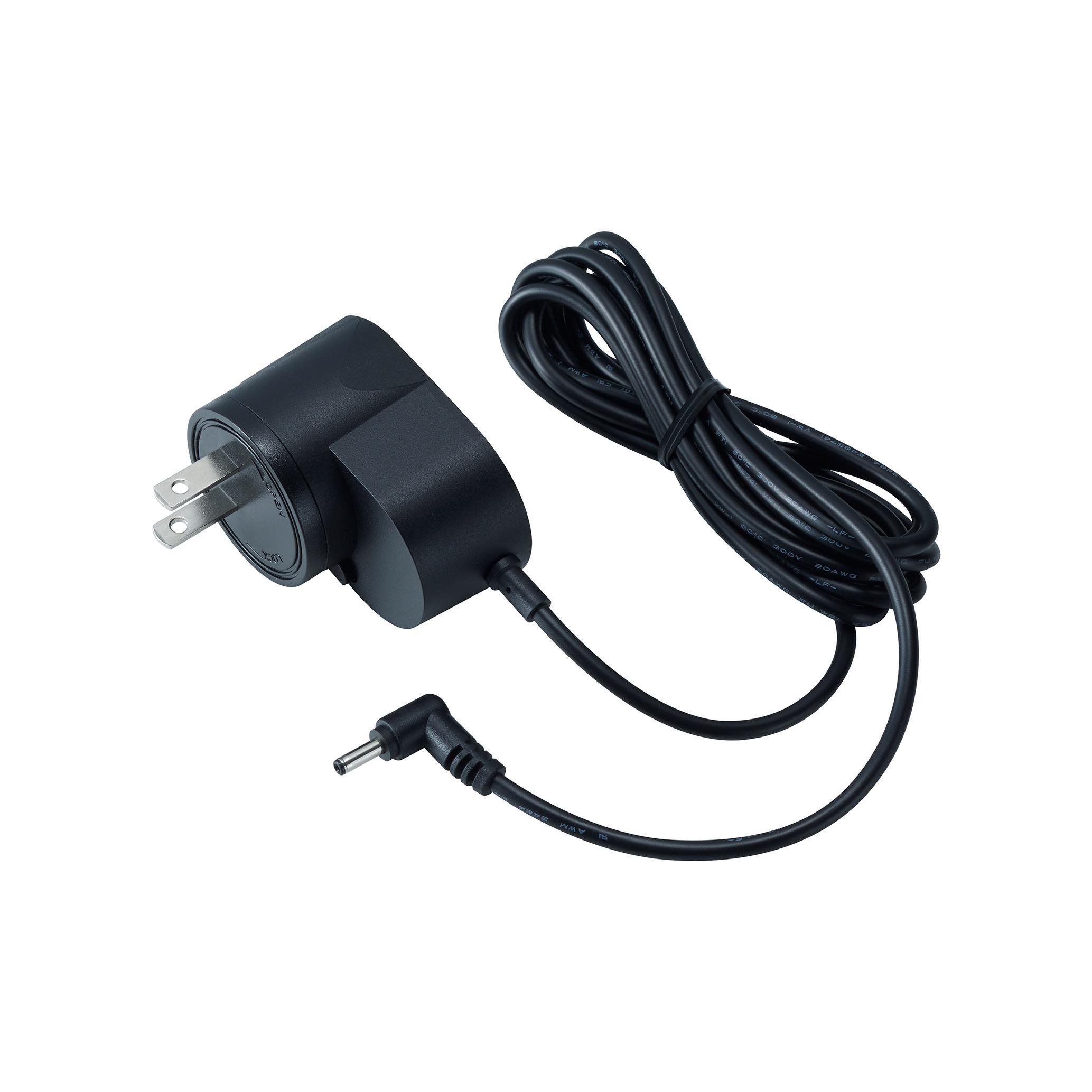

| Accessories | Dedicated AC adapter × 1,User manual (with warranty),Empty bottle × 1, Tube × 2,Cleaning brush × 1 |
Anti-bacterial Deodorizing function
| Ozone generation | Max.5mg/h |
|---|---|
| Recommended Scope of Application | Low 1.6 to 9.3m2/Mid 9.3 to 21.7m2/High 21.7 to 31m2 |
Aroma Diffuser function
| Spray method | Nebulization |
|---|---|
| Fragrance area coverage | Low:Approx.9.3m2/Mid:Approx.21.7m2/High:Approx.62m2 |
| Operating time | 1/3/5/10 hours |
- Anti-bacterial Deodorizing function: The recommended scope of application is based on the condition of the number of ventilations (0.5 times/hour) in residential rooms in compliance with the Building Standards Law,It is set to be an ozone concentration that is effective and is below the average of the permissible indoor concentrations determined by the Japan Air Cleaning Association.
- Aroma Diffuser function:The recommended scope of application is set based on the six-level odor intensity scale.
