MXH-BTW510Bluetooth True Wireless Canal Type Earphones
Sound Fit Partner
- Compact size and light weight, convenient to carry
- QCC3020 chipset used with stable connectivity
- High sound quality with aptXTM support
- Hands-free compatible, IPX5 waterproof design*1
- Continuous playback time approx. 7 hours*2
- Touch sensor button adopted
- Excluding the charging case.
- Continuous playback time approx. 7 hours: Playback time is based on internal test results. May vary on the usage environment and condition.
Reset Method
Media Introduction
Published in Premium Headphones Guide 2021 Autumn Edition Vol.26.
Features

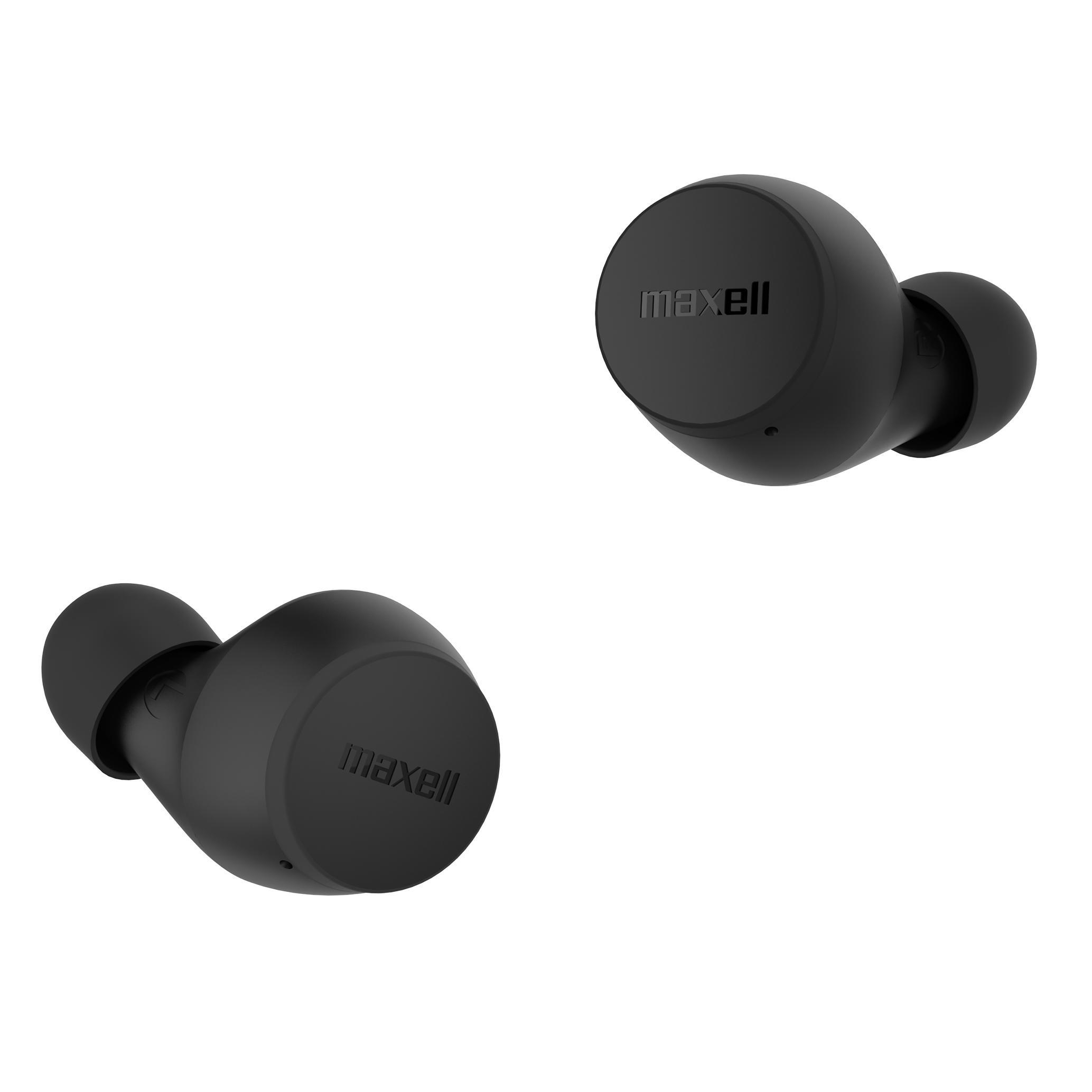

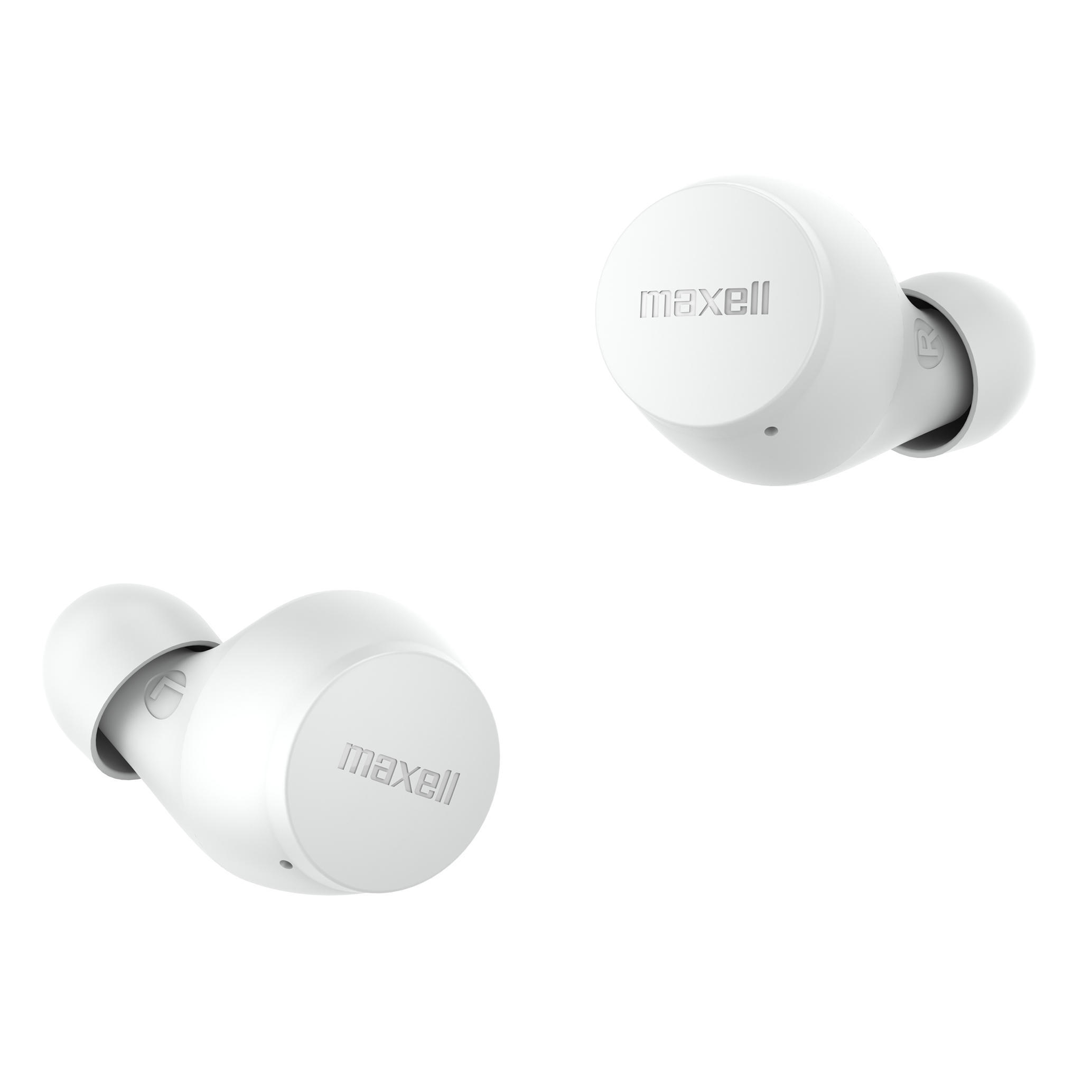

Compact size and light weight, convenient to carry
Approximately 4g per earbuds to fit the ear. The lightweight design of about 32g including the charging case makes it convenient to carry.
Stable connectivity with QCC3020 chip
QCC3020 chipset, it provides stable connectivity of earphones, and adopts to reduce signal latency.
2 Colors (Black, White)
High sound quality with aptX™ support
Supports high-quality sound codec aptXTM.
Hands-free compatible, IPX5 waterproof design
Hands-free call supports Bluetooth® HFP / HSP compatible smartphones and mobile phones.
Waterproof design*1 with IPX5, which protects headphones from rain and sweat. It is recommended for outdoor scenes.
Continuous playback time about 7 hours
Compact size but it provides continuous playback for about 7 hours*2, and when the charging case is fully charged, it can be played for about 21 hours*3
Touch sensor button adopted
A touch sensor button has been adopted to improve operability.
- Excluding the charging case.
- Continuous playback time approx. 7 hours: Playback time is based on internal test results. May vary on the usage environment and condition.
- Approximately 21 hours of playback: When the main unit and charging case are fully charged, the playback time is approximately 21 hours, one time from the main unit and two times from the charging case.
Line Up
| Product type | Model | Color | Order | Price |
|---|---|---|---|---|
| Bluetooth®Compatible True wireless canal earphones |
MXH-BTW510BK | Black | Open | |
| MXH-BTW510WH | White |
Can be purchased from the official Maxell main store and Maxell’s direct-sales website.
- The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Maxell Asia, Ltd. is under license.
- This product has a built-in lithium-ion battery. The usage time and battery charging time are based on our internal test results. May vary on the usage environment and condition.
- The names, logos and service marks mentioned are registered trademarks or trademarks of Maxell or other companies.
- The specifications and design of listed products are subject to change without notice.
- The product images shown may differ from the actual product color.
Specifications
| Model | MXH-BTW510 | |
|---|---|---|
| General | Type | Sealed dynamic type |
| Driver unit | Diameter 6mm | |
| Frequency Response | 20～20,000Hz | |
| Weight | Main Unit:Approx.4g x 2 Charging Case:Approx.24g | |
| Power Supply | Built-in rechargeable lithium ion battery | |
| Duration*1 | Main unit continuous playback:about 7 hours, standby time:about 160 hours Charging case can charge the main body about 2 times*2 |
|
| Battery Charging Time*3 | Body: Approx. 2 hours, Charging case: Approx. 3 hours | |
| Accessories | Earpiece(S / M / L 2 each) * M is attached to the main body, Charging Cable(USB A-Micro B about 45 cm)x 1, User Manual(with warranty) | |
| Bluetooth® | Communication Method*4 | Bluetooth®Ver.5.0 |
| Maximum distance | Max.10m*5 | |
| Supported Profile | A2DP、AVRCP、HFP、HSP | |
| Supported Codecs | SBC、aptXTM | |
| Supported Content Protection | SCMS-T | |
| Multi-pairing | Max.up to 7 units |
- Playback time is based on internal test results. May vary on the usage environment and condition.
- When the main unit and charging case are fully charged, the playback time is up to 21 hours, 1 time from the main unit and 2 times from charging case.
- Battery charging time is based on internal test results. May vary on the usage environment and condition.
- Maxell do not guarantee compatibility with all Bluetooth® devices.
- The communication distance is tested in open area. It may change depending on the surrounding environment.
